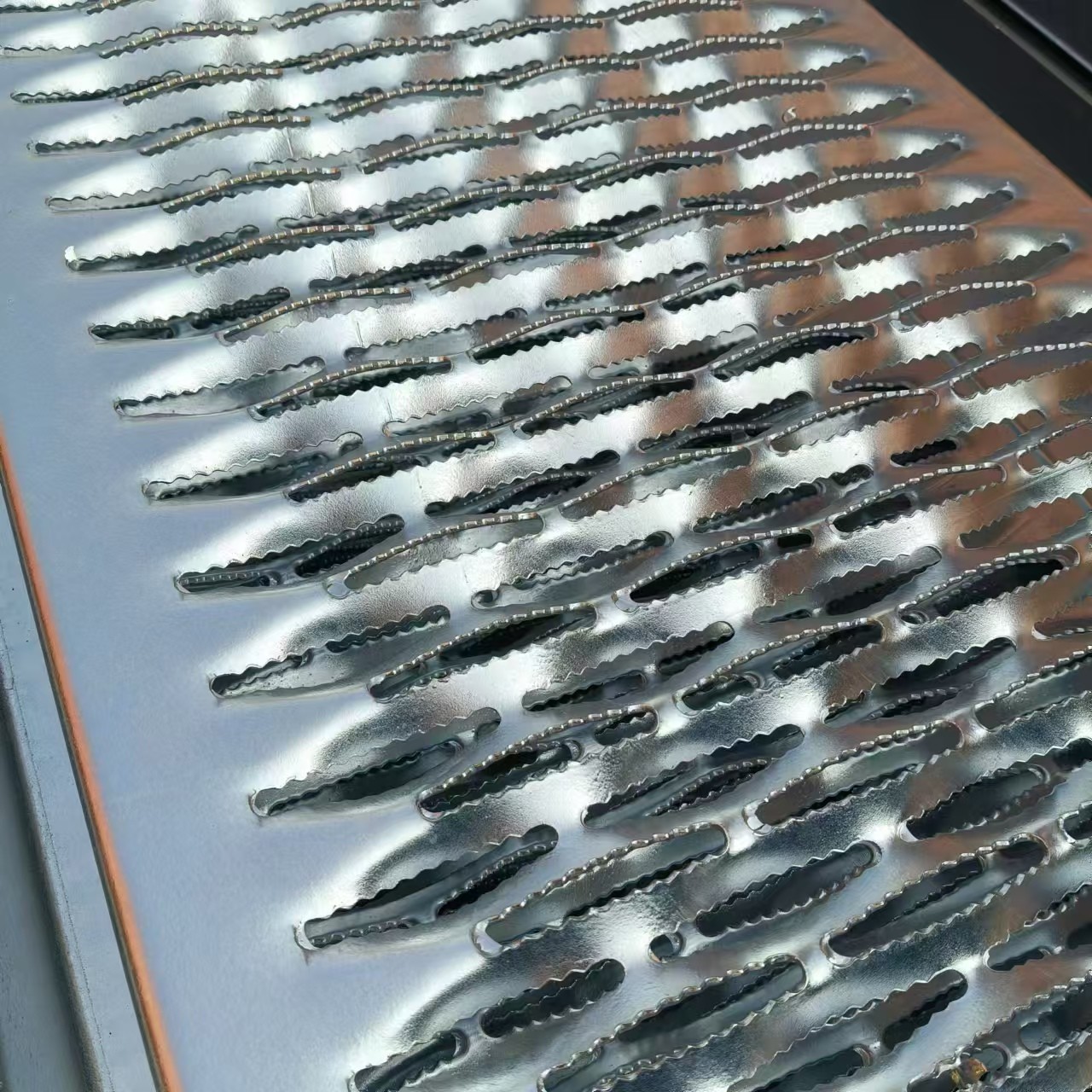

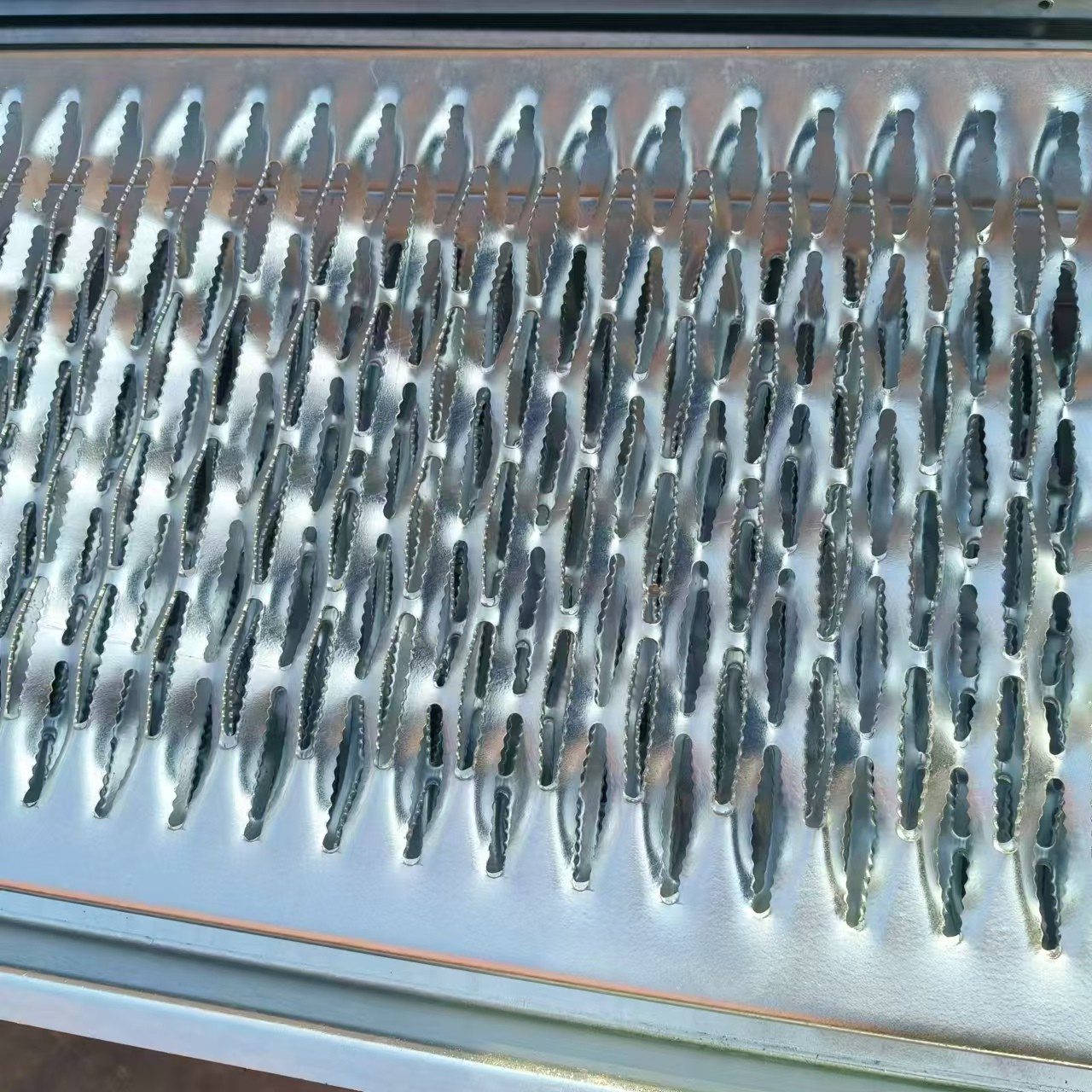

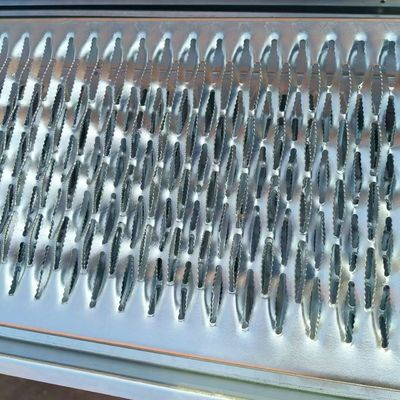

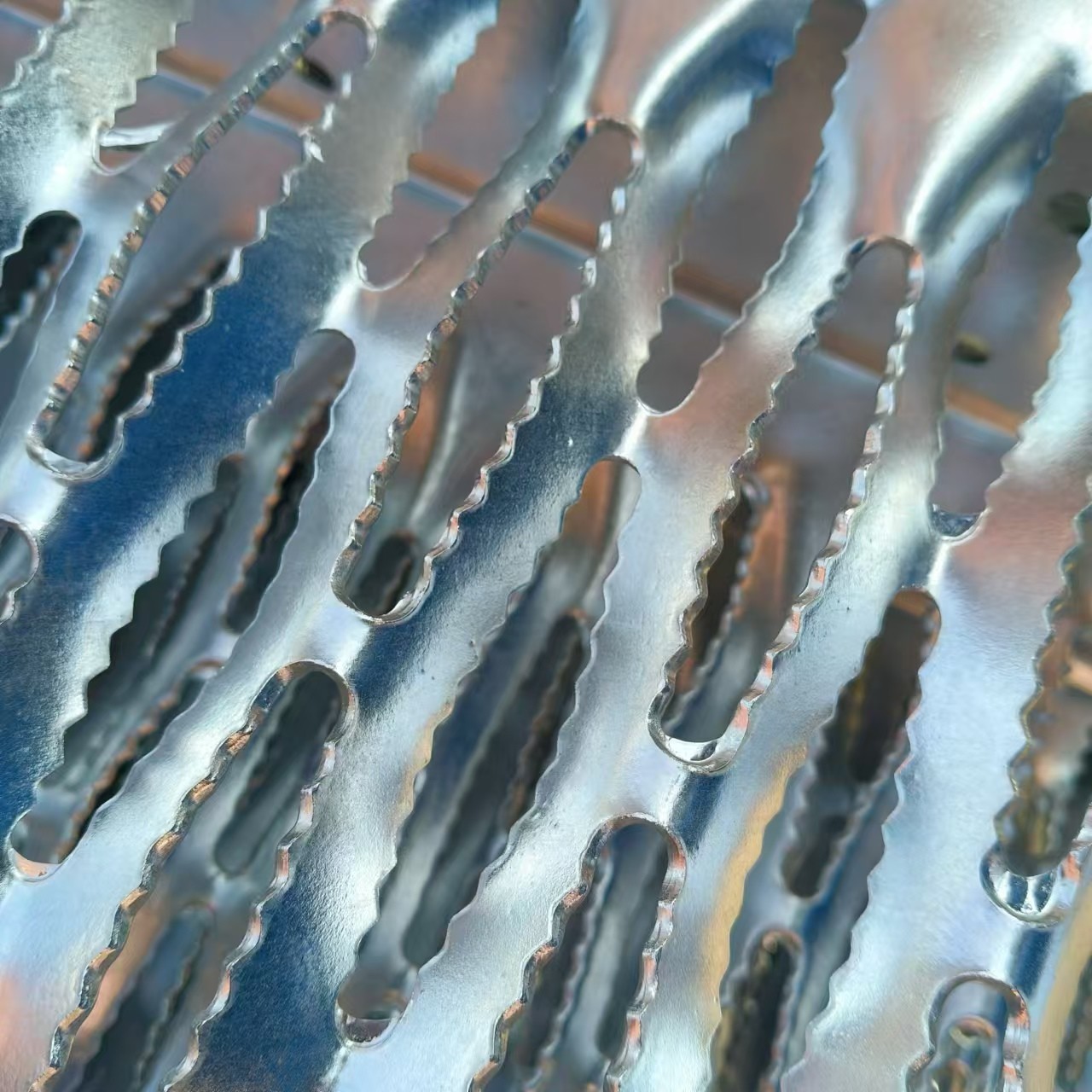

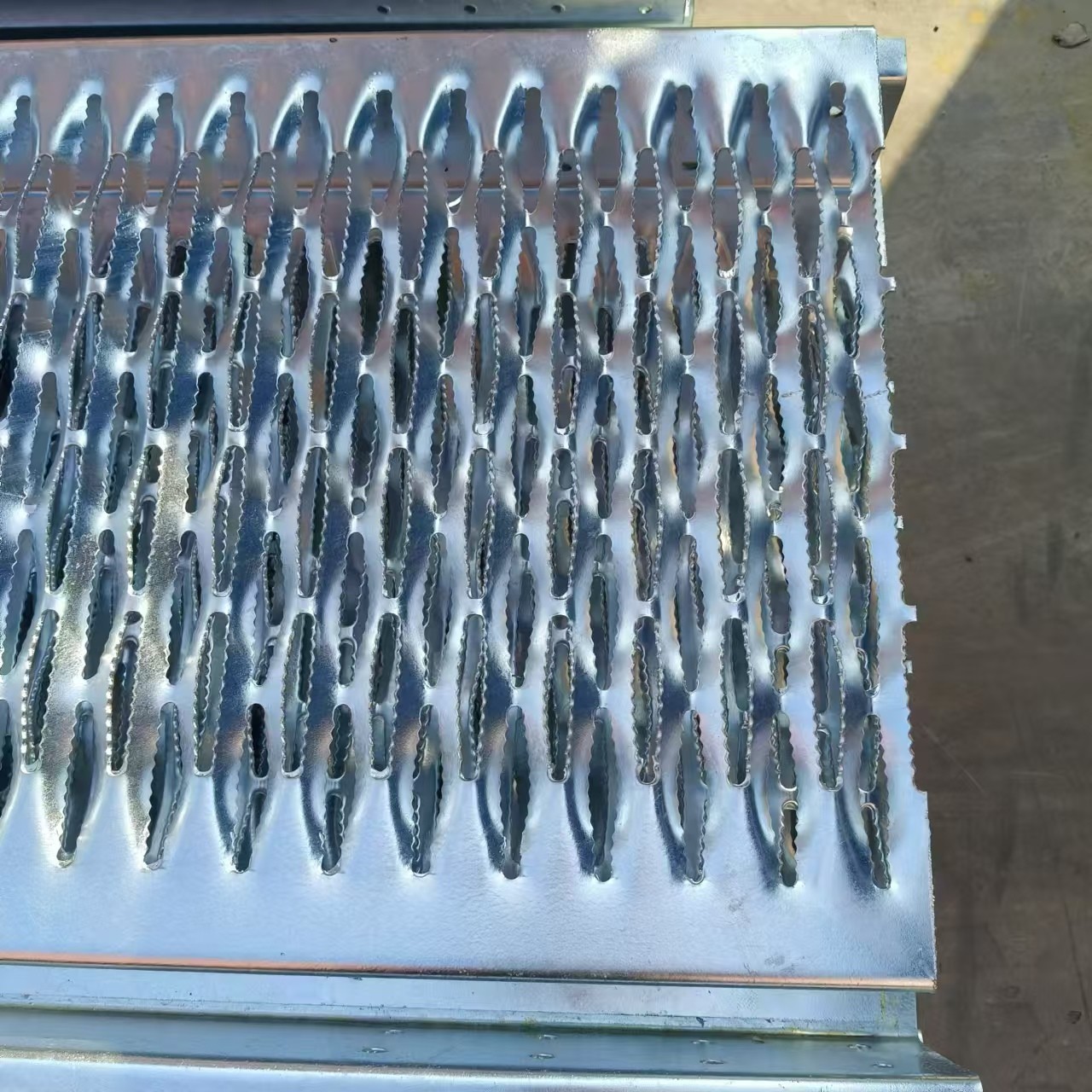

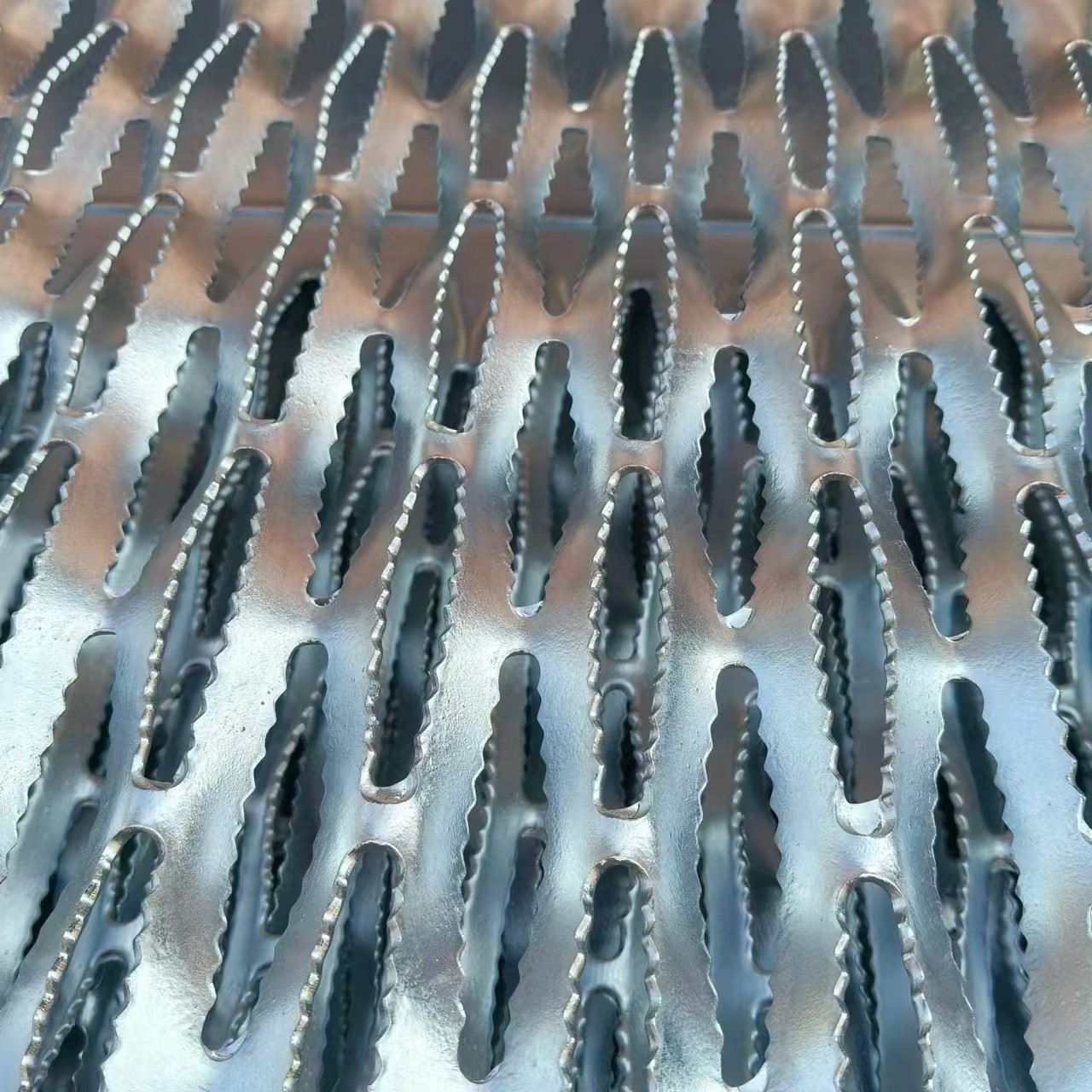

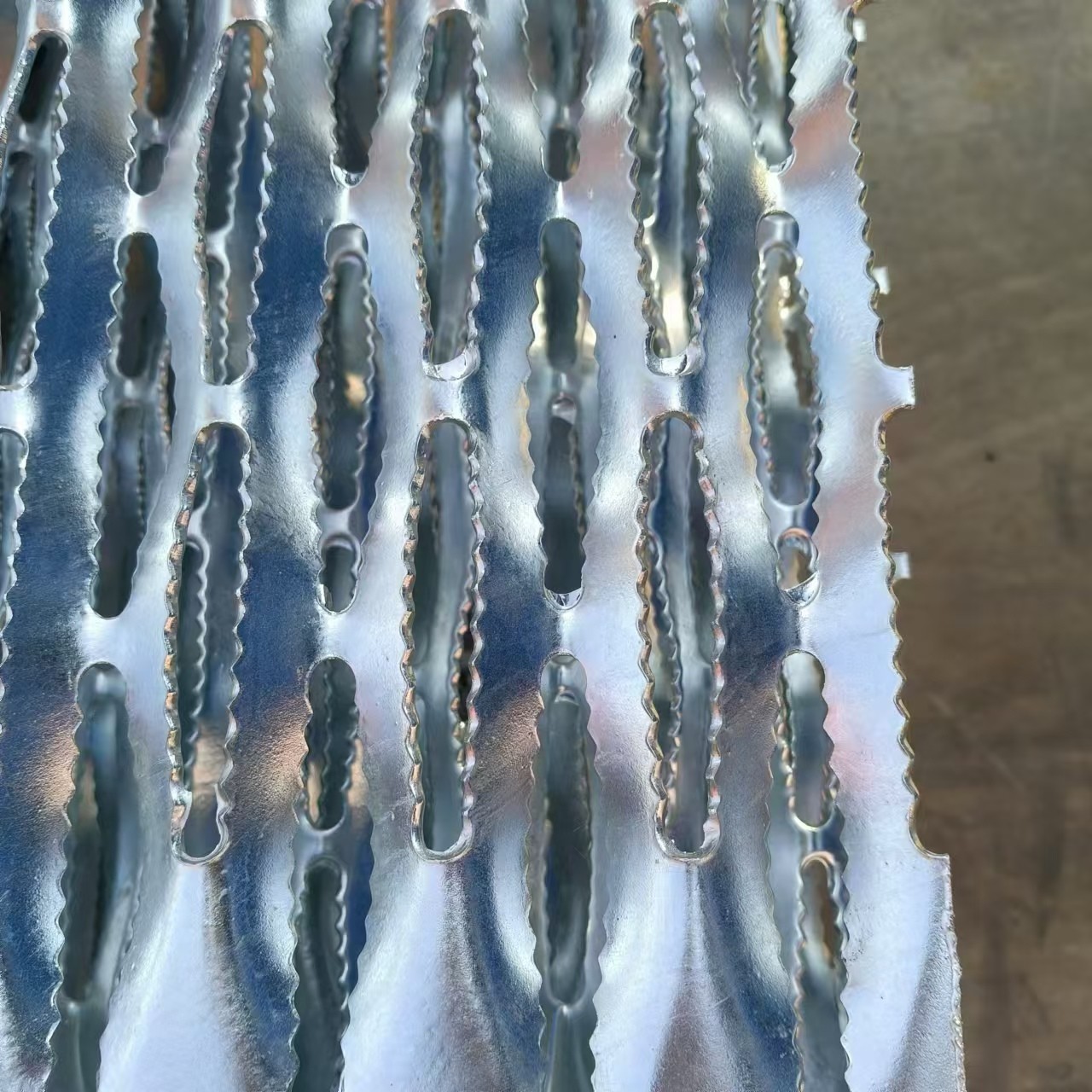

Strong And Sturdy Serrated Steel Grating With 50MM And 100MM Bar Spacing
| Place of Origin | ANPING,CHINA |
|---|---|
| Brand Name | TT |
| Certification | ISO9001-2015 |
| Model Number | TT-3 |
| Minimum Order Quantity | 100 PIECES |
| Price | Negotiable |
| Packaging Details | Wooden Or Steel Pallet |
| Delivery Time | 2-6 DAYS |
| Payment Terms | L/C T/T |
| Supply Ability | 1000PIECES |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Strong And Durable Industrial Steel Grating Suitable For Harsh Environments | Size | As Per Drawing, Commoned 32*5 |
|---|---|---|---|
| Load Bearing Capacity | Heavy Duty | Thickness | 2mm-5mm, 5mm |
| Aluminum Alloy Properties | Light Weight, High Strength And Good Corrosion Resistance, Widely Used In Aerospace And Construction Fields | Load-Bearing Capacity | Strong |
| Product Category | Industrial Steel Grating | Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
| Highlight | 100MM Bar Serrated Steel Grating,50MM Bar Serrated Steel Grating,Strong Serrated Steel Grating |
||
Product Description
| Type | Welded steel grating,pressure-locked,socket-welding |
| Steel flat size | 20*3,25*3,25*5,30*3,30*4,30*5,32*3,32*5.....45*5mm |
| Beraing bar pitch | 12.5,15,20,25,30,35,40,50mm |
| Cross bar pitch | 38,50,80,100mm |
| material | Low carbon steel,stainless steel,aluminium |
| Surface treatment | Untreated,hot galvanized,painted |
|
standards |
China:YB/T 4001.1-2007 USA:ANSI/NAAMM(MBG531-88) UK:BS4592-1987 Australia:AS 1657-1985 |
We focus on wire mesh products, dedicated to provide customers with all kinds of high quality wire mesh products and application solutions. According to the different requirements of customers, recommend suitable wire mesh series products; Based on the principle of product and service are equally important, strives for the survival by the quality, seek development by credibility, strong technology, well-equipped, product quality is stable, and many domestic and foreign merchants established a good cooperative relationship.
product material Raw materials of steel grid plate are: flat steel, twist steel, pattern plate.
The steel grid plate is an open steel member which is composed of bearing flat steel and cross bar according to certain spacing and fixed by welding or pressure lock. The transverse bar is generally made of twisted square steel, round steel or flat steel, and the material is divided into carbon steel and stainless steel.
Production method of steel grid plate:
The pressure welded steel grid plate is made of load flat steel and cross bar arranged according to certain spacing longitude and latitude, using 200 tons of hydraulic resistance welding automatic equipment to weld into the original plate, through cutting, opening, packaging and other processes.
Load flat steel spacing: the center distance between two adjacent load flat steel, commonly used 30MM, 40MM two.
Bar spacing: The center spacing of two adjacent bars is usually 50MM and 100MM.
